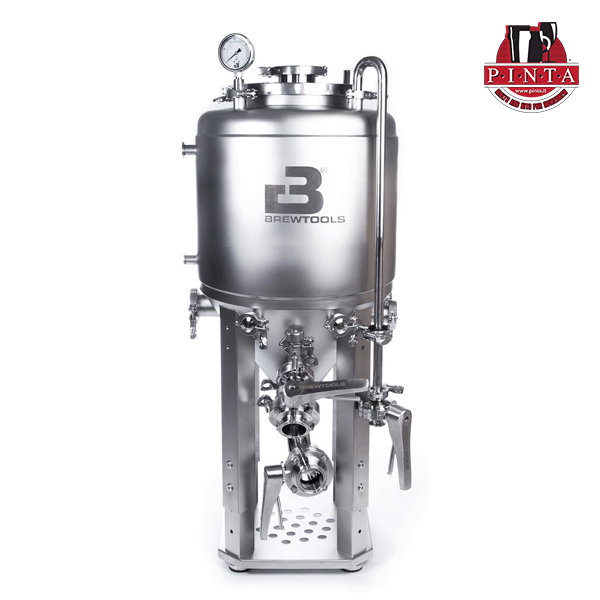

Brewtool UNITANK isobaric fermenters makes the quality and design of professional Unitanks available to homebrewers or small breweries
MAIN FEATURES:
- The PureBlast ™ surface inside and out that eliminates the use of wax and polishing compounds and does not require passivation.
- The cooling jacket in the vertical walls provides efficient cooling without the need to clean the spiral.
- Many options for connecting accessories such as sensors, heaters, stones and other accessories.
- Nominal pressure for 2 bar / 30 PSI.

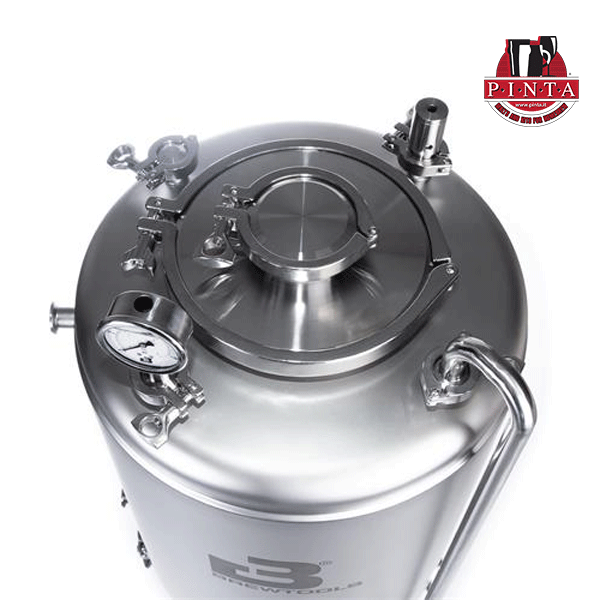

- 8 "TC port on top for easy access.
- TC 2 "drain and drain valves.
Unitank designed and manufactured with particular attention to safety and quality.
They are tested and certified according to the requirements for PED 2014/68 / EU by a third party.
Specifications:
- Reduced height without acc .: 83 cm
- Max height without acc.: 103 cm
- Packaging dimensions: 85 (h) x 52 (w) x 52 (d) cm
- Net weight: 38 kg
- Gross weight: 44.6 kg
- Tank diameter (internal): Ø40 cm
- Gross volume: 51 liters
- Max rec. volume: 40 liters
- Min rec. volume: 20 liters
- Volume, cone: 12 liters
- Material: 1.5mm stainless steel (SS304)
- Working pressure: 1.0 bar / 15 PSI
- Maximum pressure: 2.0 bar / 30 PSI
In the box:
- Unitank with adjustable frame
- 1 pcs analog pressure gauge, TC34mm
- 2 pieces throttle valve, 2 "
- 1 butterfly valve, 34mm DN20
- 1 piece of exhaust pipe
- 1 piece Racking arm 2 "
- 1 piece TC 90 ° elbow, 2 "
- 1 piece Insulation jacket, black neoprene
- 1 sampling valve, 34 mm
- 1 TC 8 "-4" adapter
- 1 TC blind plug, 3 "
- 1 TC 2 "blind plug
- 2 x 1.5 "TC Blanking Plugs
- 3 TC blind caps 34mm
- 2 TC 8 "lip seals
- 2 TC 4 "gaskets
- 2 TC 2 "gaskets, pack of 5
- 1 x 1.5 "TC gasket, pack of 5
- 3 TC 34mm gaskets pack of 5
- 1 piece Tri Clamp 8 "
- 1 piece Tri Clamp 3 "
- 5 pieces Tri Clamp 2 "
- 2 Tri Clamp 1.5 "clamps
- 10 pieces Tri Clamp 34mm
- 1 TC tool
- 4 M10 steel / rubber feet
- 1 safety valve TC34mm (PRV, 2 bar)
- Bolts and parts required for assembly
